Dometic Furnace Model DFMD30131 Tune-Up Kit

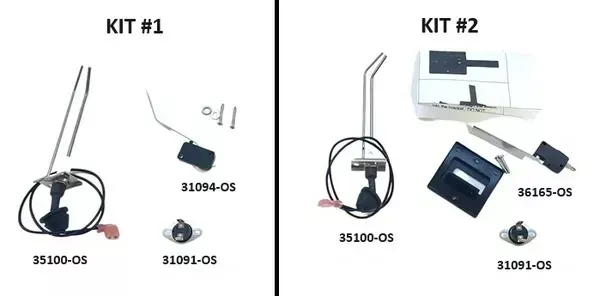

Dometic Furnace Model DFMD30131 Tune-Up And Repair Kits Kit 1 Is Only Applicable To Serial Numbers Before 72489156 Tune-Up Kit 1 Includes ( individual part links below ): Item 4510  Electrode Assembly (link):  35100-OS Item 4560  Limit Switch, 190 Degrees (link):  31091-OS Item 4524  Sail Switch (link):  31094 NLA (Replaced By P  31094-OS )(curved blade) IN-STOCK Kit 2 Is Only Applicable To Serial Numbers After 72489156 Tune-Up Kit 2 Includes ( individual part links below ): Item 4510  Electrode Assembly (link):  35100-OS Item 4560  Limit Switch, 190 Degrees (link):  31091-OS Item 4524  Sail Switch (link):  33082-OS  (New P 36165-OS)(flat blade) IN-STOCK ______________________________________ Dometic Furnace Model DFMD20131 Exploded Parts View Links *Not Shown*  Blower Motor / Combustion Wheel / Blower Wheel Kits (link): 30722/33128/33126 Item 4501 10 Amp Circuit Breaker (link):  30335 Item 4510  Electrode (link):  35100 Item 4510  Electrode (link):  35100-OS Item 4516  Gas Valve (link):  31098 Item 4524 OEM Curved Blade Sail Switch (link):  31094 NLA (SN 72489156 & Prior)(Replaced By P Link:  31094-OS ) Item 4524  Curved Blade Sail Switch (link):  31094-OS (Serial Number 72489156 & Before) Item 4524  Curved Blade Sail Switch (link):  31094MC (Serial Number 72489156 & Before) Item 4524 OEM Flat Blade Sail Switch Kit (link):  33082 (After SN 72489156) (New P 36165) Item 4524  Flat Blade Sail Switch Kit (link):  33082-OS (After SN 72489156) (New P 36165-OS) Item 4524  Flat Blade Sail Switch Only (link):  33063 Item 4528  Sail Switch Mount (link):  33083 Item4541  OEM Ignition Module (link):  31501 (33488) Item4541  After-Market Ignition Module (link): 35-535811-113 Item4541  After-Market Ignition Module (link):  31501MC (33488) Item4541 Dinosaur Electronics Ignition Module Board (link): FAN50PP Item 4549 OEM Blower Motor (link):  30722 Item 4549 After-Market Blower Motor (link):  30722MC Item 4560  Limit Switch, 190° (link):  31091 Item 4560  Limit Switch, 190° (link):  31091-OS Item 4560  Limit Switch, 190° (link):  31091MC Item 4565 Manifold Extension Assembly 35712 (Non Stocked Item) Item 4575 Duct Adapter, 2 Inch (link):  36688 *Not Shown* 2 Inch Flexible Heater Duct Hose (link):  E2-25 Item 4576 Duct Adapter, 4 Inch (link):  31474 *Not Shown* 4 Inch Flexible Heater Duct Hose (link):  E4-25 Item 4577 Duct Cover, 4 Inch (link):  31361 Item 4581 Burner Assembly (link):  30268 Item 4581  Burner Assembly (link):  30268-OS Item 4601 Orifice (Stamp 52) (link):  31081 Item 4610 Casing Leg 31244 (Non Stocked Item) Item 4615 Vertical Adapter Plate 30205 (Non Stocked Item) Item 4620 Horizontal Adapter Plate (link):  30261 Item 4625 Blower Wheel w/ Clamp (link):  33126 Item 4630 Combustion Wheel w/ Clamp (link):  33128 Item 4705 Door Vent Assembly (link):  33050 Item 4738 Door Bezel (link):  32611 Item 4742 Black 44 Door 33056 (Non Stocked Item) Item 4743 White 34 Door 33057 (Non Stocked Item) Item4755  Thermostat, Heat Only, Black (link):  32300 Item4756  Thermostat, Heat Only, Brown (link):  38452 NLA Item4757  Thermostat, Heat Only, White (link):  38453 Item4757  Thermostat, Heat Only, White, Digital (link): 961000813 Item 4848 Blower Housing 30751 (Non Stocked Item) Item 4852 Blower Housing Cover (link):  32444 Item 4855  Wiring Harness 33060 (Non Stocked Item) Item 4856 Board & Breaker Bracket 33052 (Non Stocked Item) Item 4865 Exhaust Adapter 33173 (Non Stocked Item) Item 4869 Heat Exchanger 33301 (Non Stocked Item) Item 4873 Door Gasket 33321 (Non Stocked Item) Updated On: 2/12/26
