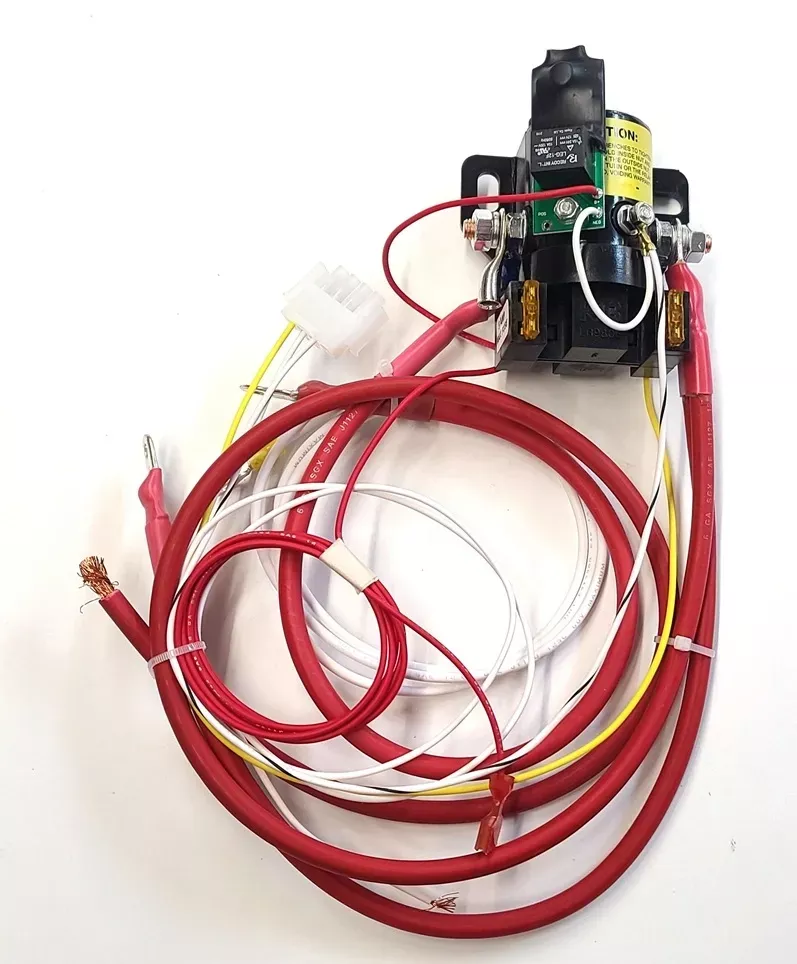

KIB Electronics Battery Disconnect Latching Relay LR9806TI0-BIP IN-STOCK Version: OEM (KIB Electronics) MPN: LR9806T10-BIP SKU: LR9806T10-BIP Also known under part number: LR9806TIO-BIP KIB / ATC Latching Relay Troubleshooting Video Link Specifications: Coil Rating 12VDC – 4.4 Ohms Non-Poliarity Sensitive Min. Activation Voltage 7VDC Contact Type: 110 amps carry 6-36VDC Latch Type: Mechanical Push On/Push Off Coil Activated T10-BIP version has a small circuit board attached to the “positive” terminal of the relay coil. This is a protection device that removes voltage from the coil after a time delay to protect the coil should the switch become stuck in the closed position, or the wiring become grounded. Used extensively on Thor RV’s & Motorhomes Commonly confused with part numbers (links): LR9806J-BIP or LR9806C-BIP or LR9806T1-BIP Updated On: 4/13/26
